Vacuum Emulsifying Machine
Product description
Application:
Daily chemical and cosmetics industry:
(1) baby cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc
Pharmacy industry:
(2) Emulsion, emulsifier, ointment, syrup etc
Food industry:
(3) sauce, cheese, oral syrup, nutrient solution, infant food, chocolate, saccharine etc
Chemical industry:
(4) latex, saponification, paint, resin, adhesives, lubricating agent etc

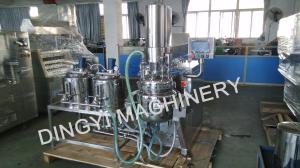

2. The machine is made up of pretreatment tank (oil tank, water tank), vacuum emulsifying machine, vacuum pump , tilting system, electric control system or steam heating system and workable platform.
· Capacity:20-30L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS
Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.
|
Model
|
Capacity |
Emulsifying motor |
slow mixer motor |
Machine dimension |
Total power(KW) |
|
KW
|
RPM |
KW |
RPM |
LENGTH |
WIDTH |
HEIGHT |
Lifting hight |
| ZRJ-20 |
20L |
2.2 |
1150-3500 |
0.37 |
10-40 |
1680 |
1750 |
1950 |
2550 |
12 |
| ZRJ-30 |
30L |
2.2 |
1150-3500 |
0.37 |
10-40 |
1680 |
1750 |
1950 |
2550 |
12 |
