Semi Solid Industrial Homogenizer Equipment For Pharmaceutical Cream

Semi Solid Industrial Homogenizer Equipment For Pharmaceutical Cream

Product description of Industrial Homogenizer Equipment

Industrial Homogenizer Equipment as a semi solid equipment are suitable for the pharmaceutical & cosmetic industries for making cream, ointment, lotion, soft gel, toothpaste, hair color.

Industrial Homogenizer Equipment is a coaxial and triple type mixer, suitable to stable homogenizing and emulsifying. Relying on mixing of reversed impeller, under the condition of homogenizing turbine and vacuum status, you can get the high-quality effect of emulsifying and mixing.

Industrial Homogenizer Equipment has very good performance in the aspect of insuring high quality of the finished material.
·Capacity:5L-5000L
·Material: material contact part SS316L, material non-contact part SS304.
·Customized service: to provide and design total solution as per customer URS

Industrial Homogenizer Equipment including:

·Industrial Homogenizer Equipment Body
·Pre-mixing tank for water and oil material
·Vacuum system
·Hydraulic system
·Control system
·Platform made from SS304

Industrial Homogenizer Equipment :

·Slow mixer 0-40rpm with PTFE scraper
·Homogenizer 0-3500rpm (rotor and stator can adjust space)
·Heating by steam or electricity
·Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
·Upper cover lifting by hydraulic
·Safety limit switch for safety operation
·Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank

·High shear mixer 960rpm or slow mixer 60rpm
·Heating by steam or electricity
·Pipeline for material transfer to main emulsifying machine

lotion manufacturing equipment

industrial mixing equipment

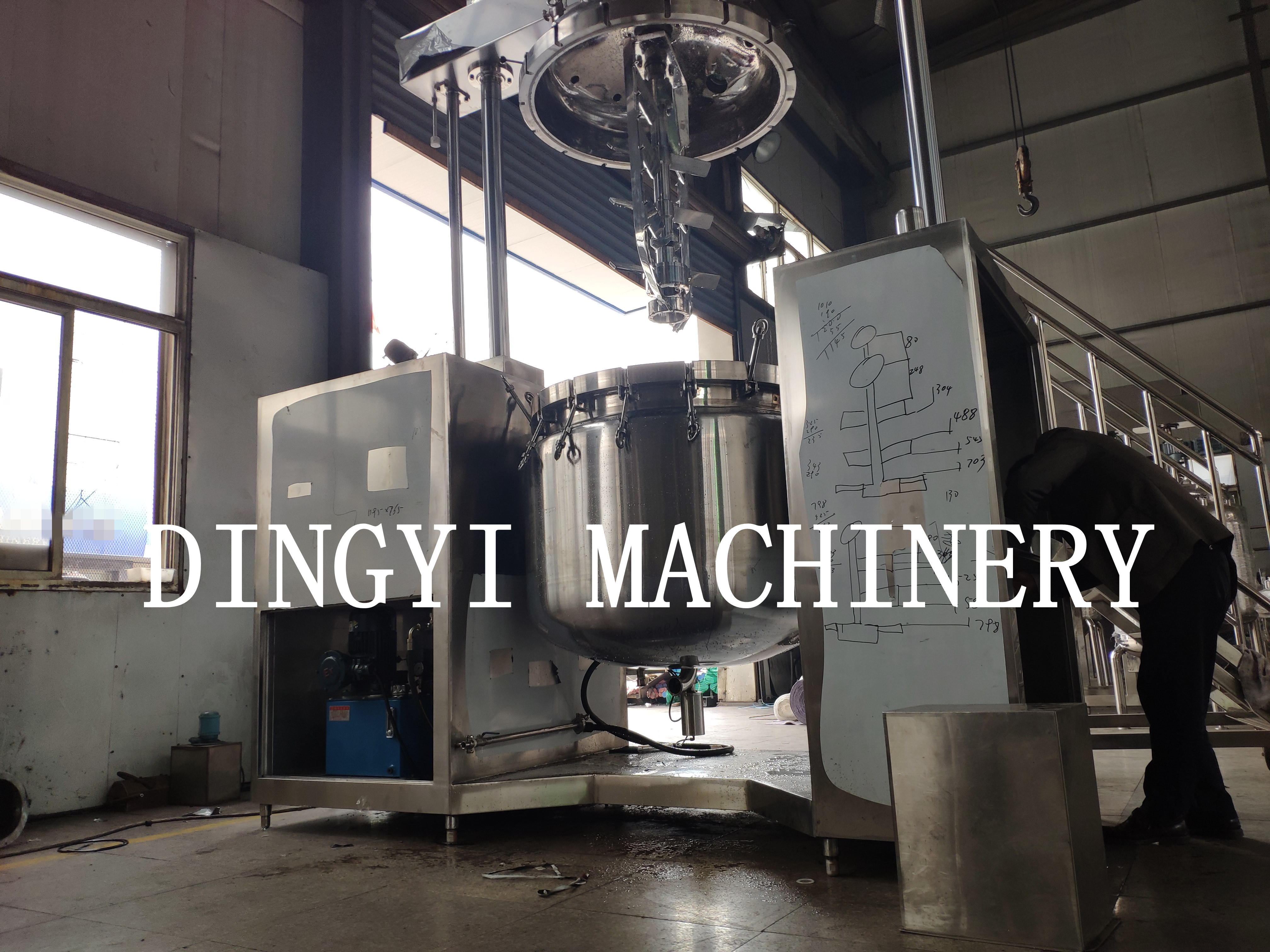

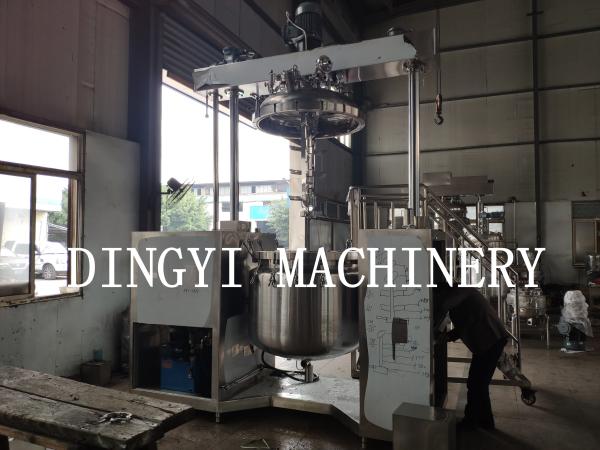

Semi Solid Industrial Homogenizer Equipment For Pharmaceutical Cream Images
