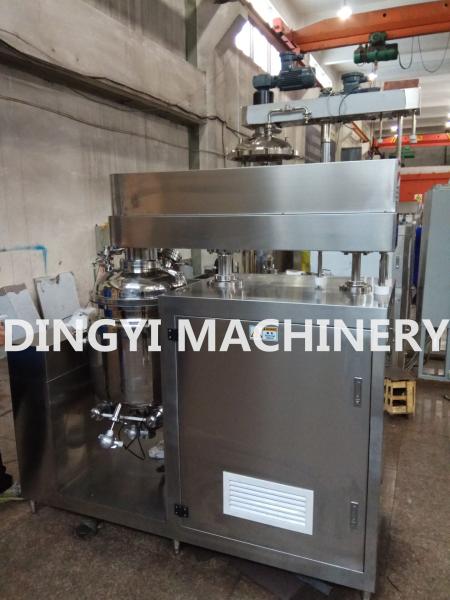

100L HMI control cream Vacuum Homogenizer Mixer stainless steel 316L
Product description
Strawberry syrup production processing as following:
The ingredients of strawberry syrup are as follows: pectin powder, water, maltitol, pectin gel, lemon juice, citric acid, potassium sorbate, sodium sorbate and strawberry. The process of making strawberry syrup: the first step is to weigh proper quantity of each ingredient to make gel, secondly put strawberry and gel into the vessel, then start the equipment to stir the materials at last.
For homogenizer(upper homogenizer or bottom homogenizer )
(1) upper homogenizer beautiful ,
(2) bottom homogenizer easy cleaning
(3) bottom homogenizer easy maintain
(4) upper homogenizer,bottom seals better that bottom homogenzer
(5) upper homogenizer speed 3500rpm,bottom homogenizer speed3500rpm.
control (touch screen control or buttom control )
(1) Buttom control save cost .
(2) According to customer
(3) buttom control easy maintain
(4) PLC touch screen control intelligentize
fixed type or lift type
(1) save cost, fixed type
(2) Small footprint ,lift type
Use
It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants .The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
· Capacity:5L-2000L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS
Vacuum emulsifying equipment including:
· Vacuum emulsifying main machine
· Pre-mixing tank for sugar
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.093Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.
Model | Capacity | Emulsifying motor | slow mixer motor | Machine dimension | Total power(KW) |
| KW | RPM | KW | RPM | LENGTH | WIDTH | HEIGHT | Lifting hight |
| ZRJ-20 | 20L | 2.2 | 1150-3500 | 0.37 | 10-40 | 1800 | 1600 | 1850 | 2700 | 5 |
| ZRJ-50 | 50L | 3 | 1150-3500 | 0.75 | 10-40 | 2700 | 2000 | 2010 | 2700 | 7 |
| ZRJ-100 | 100L | 3 | 1150-3500 | 1.5 | 10-40 | 2920 | 2100 | 2200 | 3000 | 10 |
| ZRJ-150 | 150L | 4 | 1150-3500 | 1.5 | 10-40 | 3110 | 2100 | 2200 | 3100 | 11 |
| ZRJ-200 | 200 | 5.5 | 1150-3500 | 1.5 | 10-40 | 3150 | 2200 | 2200 | 3100 | 12 |
| ZRJ-350 | 350L | 7.5 | 1150-3500 | 2.2 | 10-40 | 3650 | 2650 | 2550 | 3600 | 17 |
| ZRJ-500 | 500L | 7.5 | 1150-3500 | 2.2 | 10-40 | 3950 | 2800 | 2700 | 3950 | 19 |
| ZRJ-750 | 750L | 11 | 1150-3500 | 4 | 10-40 | 3800 | 3200 | 3050 | 4400 | 24 |
| ZRJ-1000 | 1000L | 15 | 1150-3500 | 4 | 10-40 | 3900 | 3400 | 3150 | 4550 | 29 |
| ZRJ-1500 | 1500L | 18.5 | 1150-3500 | 7.5 | 10-40 | 4000 | 4100 | 3750 | 5650 | 42 |
| ZRJ-2000 | 2000L | 22 | 1150-3500 | 7.5 | 10-40 | 4850 | 4300 | 3600 | NO LIFTING | 46
|
NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
