Industrial Vacuum Mixer Homogenizer , Body Cream Making Machine 100L
What are the features and advantages of Vacuum Mixer Homogenizer ?
Use SIEMENS/Panasonic frequency converter for speed adjustment, keeping the machine working stably and durably.
The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
Material contact parts all use SUS316L.
The heating method mainly include steam heating.
Advanced PLC touch screen control.
The emulsifying tank lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying tank can adopt tilt discharge.
Vacuum Mixer Homogenizer Applications
Daily chemical and cosmetics industry:
Baby cream, shaving cream, hand cream, toothpaste, skin-whitening cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo, lotion, hair conditioner etc.
Pharmaceutical industry:
Emulsion, emulsifier, ointment, paste, syrup etc.
Food industry:
Sauce, jam, cheese, oral syrup, nutrient solution, infant food, chocolate, saccharine etc.
Chemical industry:
Latex, saponification, paint, resin, adhesives, lubricating agent etc.
High speed homogenizing mixing system
1.1 High-speed homogenizing-mixing activity is accomplished by one turbine installed on the center bottom of tank.
1.2 Turbine is composed of dentate stator and rotor with impeller.
1.3 Turbine is made of stainless steel SUS304 or SUS316L, rotating parts pass the dynamic balancing coaxial shaft.
1.4 The timing is controlled by PLC to facilitate the setting of working time. The mixer will not work if the time is not set.
1.5 Adjust speed by frequency control: 1150-3500 rpm
It is suitable for cosmetic and pharmaceutical company to making cream, lotion, hair color etc.
· Capacity:100L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS
Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.
|
Model
|
Capacity |
Emulsifying motor |
slow mixer motor |
Machine dimension |
Total power(KW) |
|
KW
|
RPM |
KW |
RPM |
LENGTH |
WIDTH |
HEIGHT |
Lifting hight |
| ZRJ-500 |
500L |
7.5 |
1150-3500 |
2.2 |
10-40 |
4000 |
2800 |
2700 |
4000 |
17.6 steam heating |
| ZRJ-1000 |
1000L |
15 |
1150-3500 |
4 |
10-40 |
3900 |
3400 |
3150 |
4600 |
29 steam heating |
| ZRJ-100 |
100L |
3 |
1150-3500 |
1.5 |
10-40 |
2900 |
2100 |
2200 |
3000 |
9.62 steam heating |
Product Tags:
|
|

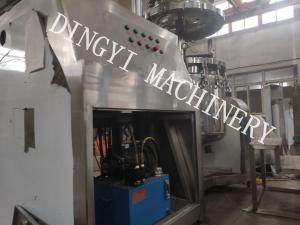

Industrial Vacuum Mixer Homogenizer , Body Cream Making Machine 100L Images
|
